What this is for

Once you’ve completed Deploy and started the gateway container, this page tells you what success should look like in the dashboard. If everything on this page checks out, the gateway is fully activated and ready to serve requests.

​
Step 1 — Watch the status pill flip

Open the Gateways page from the dashboard sidebar. Within ~60 seconds of docker compose up -d, a row appears for the new gateway with one of these pills:
PillMeaning
PendingRegistered with the control plane but no heartbeat received yet. Usually resolves in under a minute.
HealthyFirst heartbeat received. The gateway is online and ready.
OfflineNo heartbeat in the last few intervals. Check the container with docker logs guardway-gateway.
RevokedCredentials were revoked from the dashboard. The gateway is blocked from reconnecting until re-registered.
The pill flips to Healthy the moment the first successful heartbeat lands — by default that’s GUARDWAY_HEARTBEAT_INTERVAL (60s) after startup. See Environment to tune the interval.

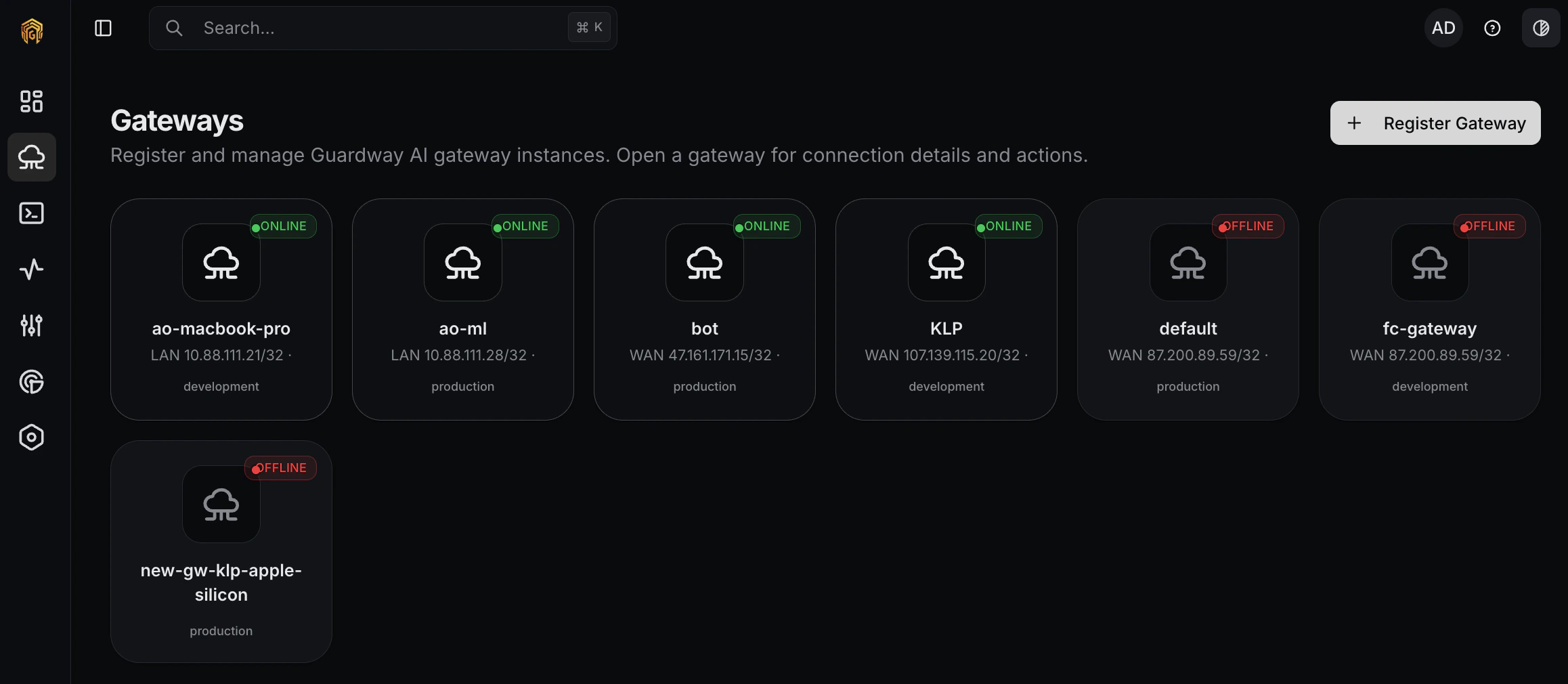

Gateway healthy in the dashboard list

​
Step 2 — Inspect the gateway detail

Click the gateway row to open its detail page. This view is your post-activation control panel for that specific gateway:
  • Connection — Gateway ID, Status, WAN IP, LAN IP, Last Seen, Environment.
  • Version & Config — running gateway version, config revision, registration timestamp, last config update.
  • Maintenance — gateway-only operations like Purge in-memory cache. Org-wide cache settings (TTL, max size) live on Settings → Traffic.
  • Local portal for users — Deploy local portal bundle generates a Docker Compose bundle for a self-hosted Guardway Local Portal (SSO/SCIM) that pairs with this gateway.
  • Header actions — Rename updates the dashboard label; Delete removes the gateway and revokes its credentials.

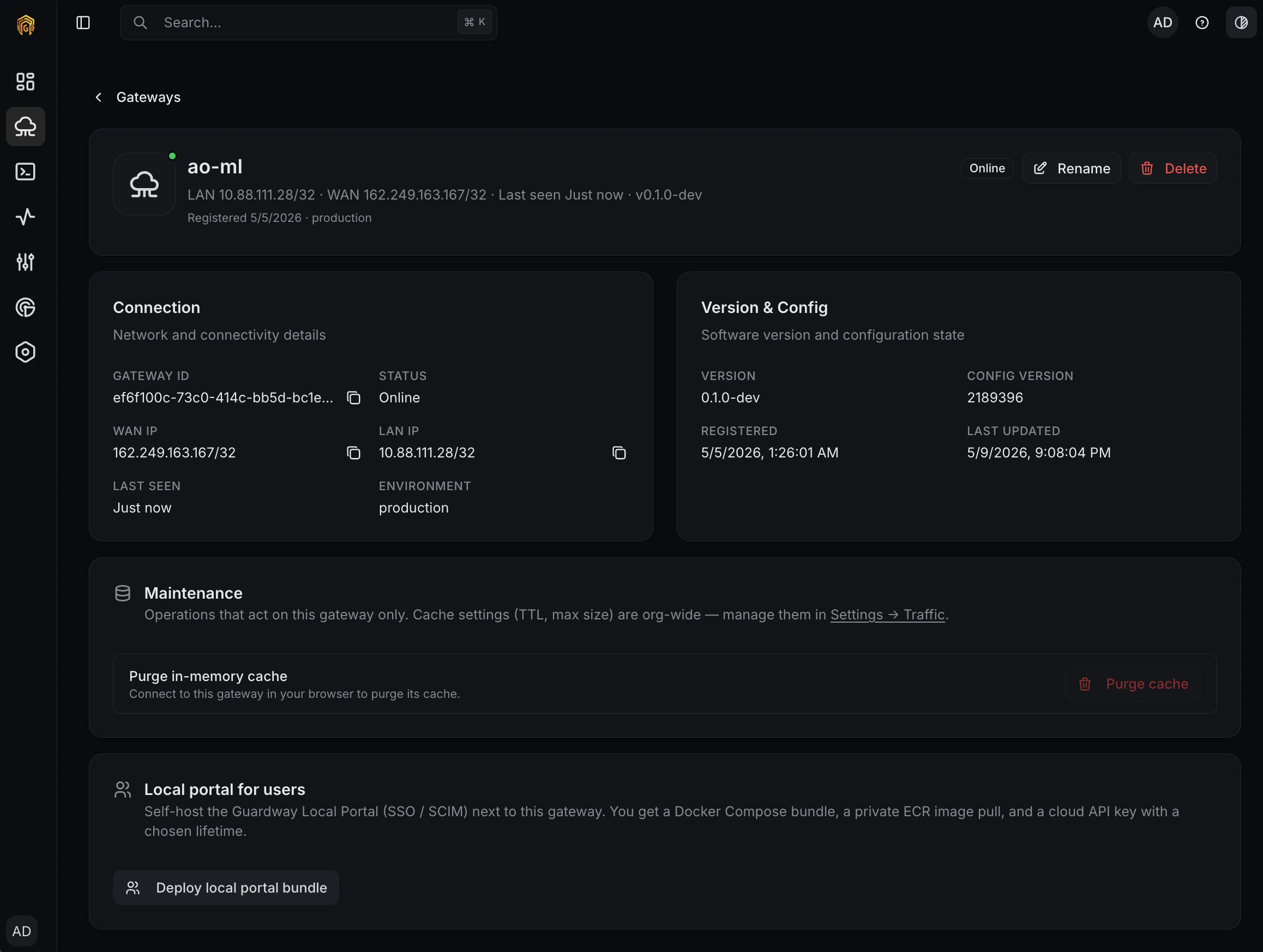

Gateway detail page — connection, version, maintenance, local portal

​
Step 3 — Send the first request

Open Playground, pick the new gateway, choose any model that’s already exposed, and send a short prompt. The first request through the gateway proves end-to-end connectivity:
  • The dashboard reaches the gateway’s local URL.
  • The gateway authenticates the request, applies any guardrails and routing, and forwards to the upstream provider.
  • The response streams back to Playground, and a row appears under Logs.
If both Playground and Logs show the request, activation is complete.

​
Step 4 — Confirm aggregate signals

Within a few minutes, the dashboard’s main views start showing the new gateway:
  • Dashboard → Overview — request counters tick up.
  • Dashboard → Usage — token totals appear for the request you just sent.
  • Logs — the request you sent in Step 2 is visible with prompt, completion, latency, and any guardrail decisions.

​
Troubleshooting

Run docker logs guardway-gateway. The most common causes are outbound HTTPS blocked by a corporate proxy/firewall, system clock skew breaking JWT validation, or a registration token that was already consumed. See Deploy → Troubleshooting.
The dashboard reaches the gateway over its local URL (the LAN/host address from GUARDWAY_LOCAL_IP or whatever you connect with). The control-plane heartbeat going through doesn’t prove that path is reachable. Confirm the host running your browser can reach the gateway on TCP 8080.
The dashboard authenticates to the gateway with a per-session JWT derived from your Supabase token. If you signed in to the dashboard before registering the gateway, sign out and back in to refresh the session.
Stop the container, delete the credentials file (default /etc/guardway/credentials.json), generate a new registration token from the dashboard, and run docker compose up -d again. The gateway re-registers as if it were a fresh install.
  • Deploy — the Register Gateway dialog walkthrough.
  • Environment — every env var the gateway reads.
  • Playground — the fastest way to send a first request.
  • Logs — confirm the first request appears.
