Deploy

Run the Guardway gateway container with the Register Gateway dialog — pick a deployment target, download the bundle (or take just the token), and start it with Docker Compose.

What this is for

Every Guardway gateway is customer-hosted: the dashboard issues a one-time registration token, you start the gateway in your own network, and the gateway calls the Guardway control plane on first boot to exchange the token for long-lived credentials.

This page mirrors the Register Gateway dialog on the Gateways page end-to-end and tells you exactly what to do on the host.

Docker Compose is the only supported installation method today. Kubernetes / Helm and systemd are not shipped — see Limitations.

Before you start

• Docker Engine ≥ 24 with Compose v2 (docker compose version).
• Outbound HTTPS internet access — the gateway reaches the Guardway control plane through the GUARDWAY_CLOUD_URL env var (covered on Environment). No specific paths or hostnames are documented here.
• One free TCP port on the gateway host. Default 8080.

Step 1 — Pick a deployment target

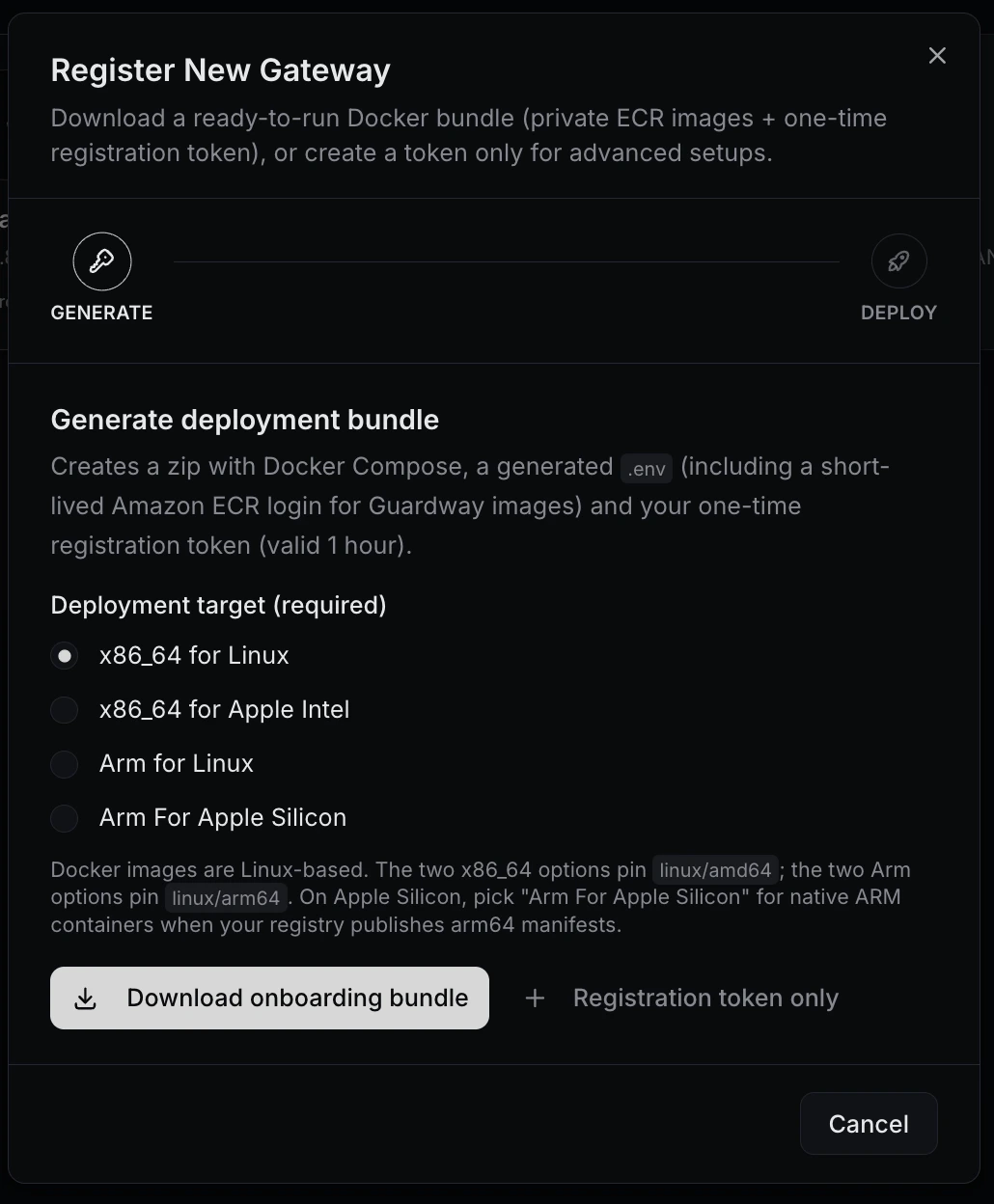

Open the Gateways page from the dashboard sidebar, click Register Gateway, and pick one of the four options. The bundle pins a Docker container platform that matches your host:

Deployment target	Pinned container platform
x86_64 for Linux	linux/amd64
x86_64 for Apple Intel	linux/amd64
Arm for Linux	linux/arm64
Arm For Apple Silicon	linux/arm64

On Apple Silicon, pick Arm For Apple Silicon for native ARM containers. The two x86_64 options pin linux/amd64; the two Arm options pin linux/arm64.

Step 2 — Bundle vs. registration token

The dialog offers two ways to start:

Path	When to pick it
Download onboarding bundle	The default. Creates a zip with docker-compose.yml, a generated .env with the registration token, and a login-ecr.sh script for pulling Guardway’s private ECR images. Best for first-time setup.
Registration token only	For advanced setups where you already have your own compose file or you’re wiring the env into a config-management tool. The dialog returns just the token and the env-var snippet.

The registration token is valid for 1 hour and single-use. If it expires before you start the gateway, just register again to get a new one.

Step 3 — docker compose up -d

From the bundle

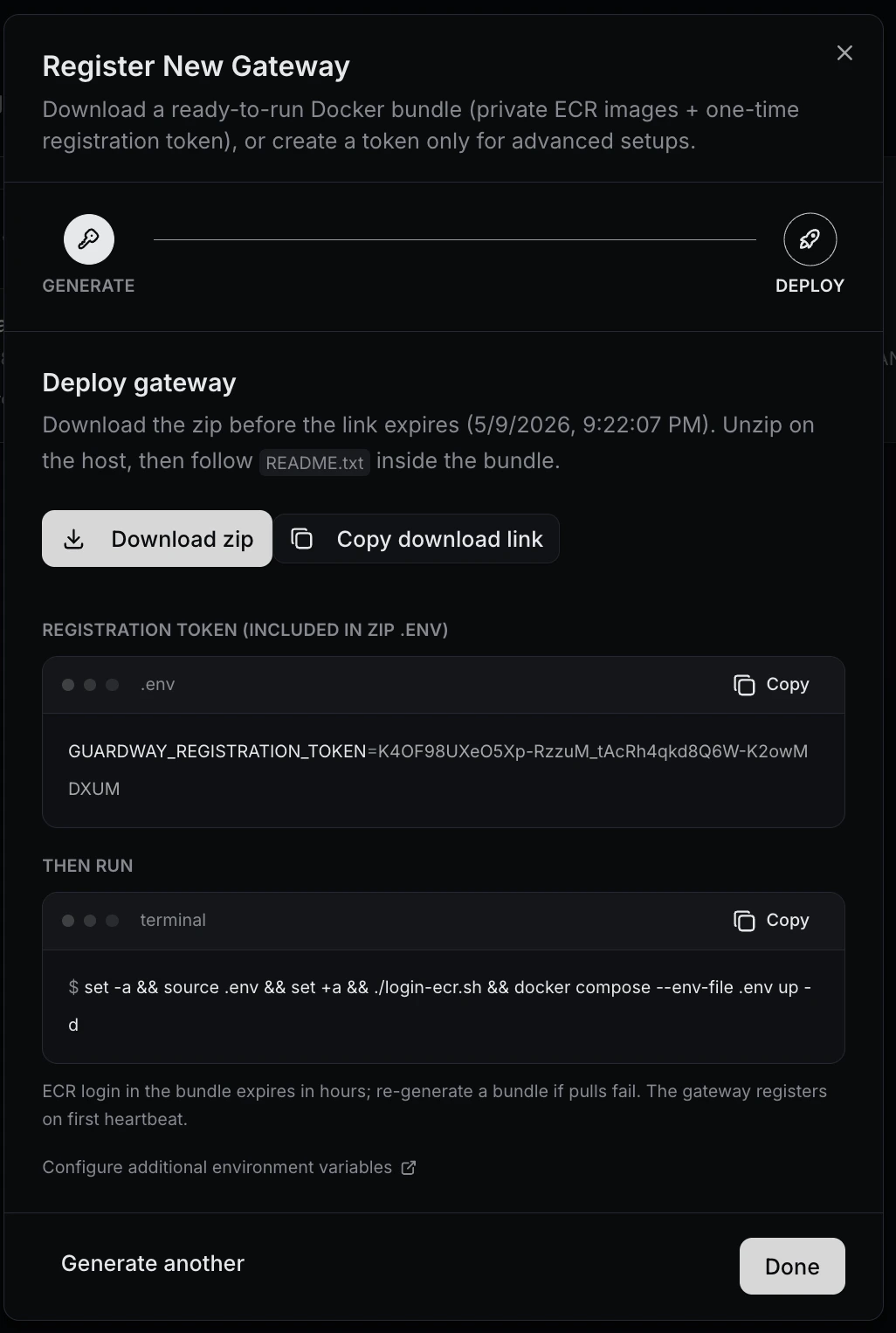

Unzip the bundle on the host, then from the unpacked directory:

set -a && source .env && set +a
./login-ecr.sh
docker compose --env-file .env up -d

login-ecr.sh runs Amazon ECR’s get-login-password flow against the credentials baked into the bundle. Those credentials expire in about 1 hour — if Docker can’t pull the image, regenerate the bundle and try again.

From the token only

Drop the printed env block into your own .env, point your docker-compose.yml at the Guardway gateway image, and:

docker compose up -d gateway

Step 4 — Registration handshake

On first boot the gateway:

1. Reads GUARDWAY_REGISTRATION_TOKEN from the environment.
2. Reaches the Guardway control plane (GUARDWAY_CLOUD_URL) and exchanges the token for long-lived credentials.
3. Persists those credentials at /etc/guardway/credentials.json (override with GUARDWAY_CREDENTIALS_PATH).
4. Starts heartbeating every GUARDWAY_HEARTBEAT_INTERVAL (default 60 s).
5. Appears in the dashboard under Gateways after the first successful heartbeat.

The token is only used once. On subsequent restarts, the gateway uses the credentials file and the env-var token is ignored.

Step 5 — Default port and minimum env vars

The gateway HTTP API listens on TCP 8080 (override with PORT).

The dialog generates exactly these env vars for the bundle:

Var	Purpose
GUARDWAY_REGISTRATION_TOKEN	One-time pairing token from the dashboard.
GUARDWAY_GATEWAY_NAME	Dashboard label for this gateway. Compose default is default.
GUARDWAY_LOCAL_IP	LAN IP for Connect / Playground hints (e.g. 192.168.1.10). Optional but recommended.

The full reference is on Environment.

Step 6 — Verify

On the Gateways page the gateway row flips to a green Healthy pill once the first heartbeat lands. That’s the customer-facing signal that the gateway is up and reachable from the control plane.

If it stays Pending for more than a minute, see Troubleshooting below.

Troubleshooting

Token already used / expired

Tokens are single-use and live for ~1 hour. Re-open the dialog and generate a fresh one.

ECR pull fails right after download

The bundle’s login-ecr.sh credentials expire in roughly 1 hour. If you didn’t run up -d in time, re-download the bundle.

Gateway never appears (stays Pending)

Check outbound HTTPS from the host (corporate proxy / firewall). Confirm host clock is in sync — clock skew breaks JWT signatures. Verify GUARDWAY_CLOUD_URL is reachable from the container.

`credentials.json` permission denied

The default path is /etc/guardway/credentials.json. Either run the container as a user that can write it, mount a writable volume, or set GUARDWAY_CREDENTIALS_PATH to a directory the process can write.

Force re-registration

Stop the gateway, delete the credentials file (default /etc/guardway/credentials.json), generate a new token, and start again. The gateway re-registers as if it were a fresh install.
